Produktdetails:
|
| Gewicht: | 29 kg | Material: | aus Stahl mit Kohlenstoff |
|---|---|---|---|
| Hammergröße: | 3 Zoll | Faden: | 3 '' Remet |
| Außendurchmesser: | 81mm | Länge: | 1069 mm |
| Lochbereich: | 84-105 mm | Luftdruck: | Hoher Luftdruck |
| Arbeitsdruck: | 10,5-3,5Mpa | Auswirkungen: | 30 Hz bei 2,4 MPa |
| Rotationsgeschwindigkeit: | 25 bis 40 r/min | Luftverbrauch: | 7-14 m³/min |
| Biss Schaft: | SRC531 | Verbindungs -Thread: | 3 '' Remet |
| Maschinenart: | Bohrwerkzeug | ||

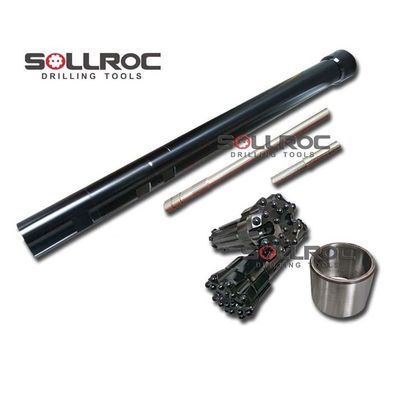

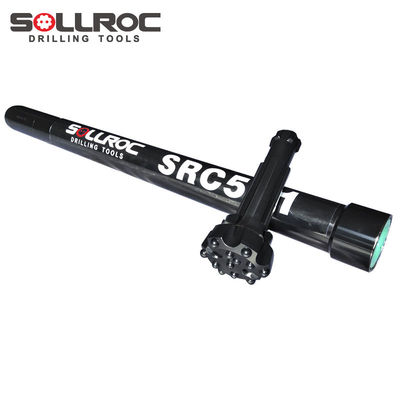

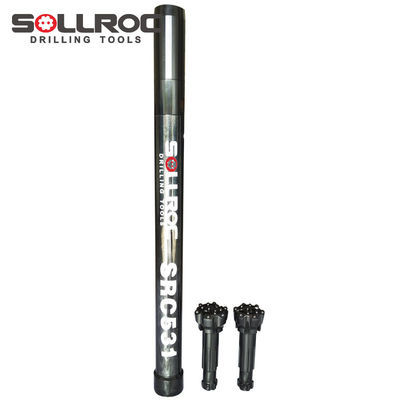

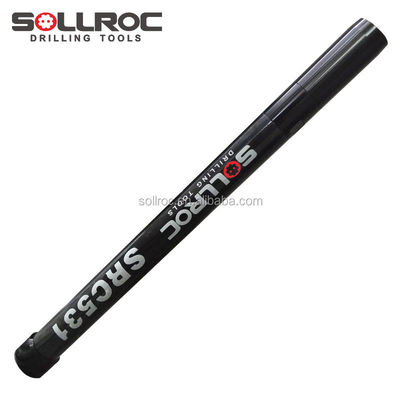

| Hervorheben: | 3 inch Down The Hole Hammer,1069mm Length Down The Hole Hammer,81mm External Diameter Down The Hole Hammer |
||
Reverse circulation drilling efficiently collects uncontaminated samples by transporting them through a hollow pipe system. This method prevents sample contamination from surface materials, ensuring accurate geological analysis.
| Length (less bit) | Weight (less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
|---|---|---|---|---|---|
| 1069mm | 29.0kg | 81mm | SRC531 | 84-100 | 3''Remet |
| Working Pressure | Impact Rate at 2.4Mpa | Recommended Rotation Speed | Air Consumption | ||
|---|---|---|---|---|---|
| 1.5-3.5Mpa | 30HZ | 25-40r/min | 1.7Mpa: 7 m³/min | 2.4Mpa: 10 m³/min | 3.0Mpa: 14 m³/min |
Available shipping methods: By sea, by air, or by express
