M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

Großes Bild :  M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

Produktdetails:
Herkunftsort: Hunan, China
Markenname: SOLLROC
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: $200
Kontakt

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

Beschreibung
Gewicht: 25 kg Material: aus Stahl mit Kohlenstoff
Verarbeitungstyp: Schmieden Durchmesserbereich: 3,5 - 12 Zoll (90 mm - 305 mm)
Gesichtsform: Flach, konvex, konkav Tastentyp: Sphärisch, parabolisch, ballistisch
Luft-Schlauch: 2, 3, 4 Messknöpfe: 6×φ14, 7×φ13, 7×φ14, 8×φ14, 7×φ16, 7×φ18, 8×φ18, 9×φ18, 10×φ18, 11×φ18, 12×φ18
Vorderknöpfe: 5×φ13, 6×φ13, 6×φ14, 7×φ14, 8×φ14, 8×φ16, 9×φ16, 12×φ16, 17×φ16, 29×φ16 Teilenummern: M40-105, M40-110, M40-115, M40-120, M40-127, M50-130, M50-140, M50-146, M50-152, M50-165, M60-152, M
Gesteinshärte: 200 MPa bis 260 MPa Bit-Durchmesser (mm): 105, 110, 115, 120, 127, 133, 140, 146, 152, 165, 178, 190, 203, 195, 216, 254, 305
Bit-Durchmesser (Zoll): 4 1/8", 4 1/4", 4 1/2", 4 3/4", 5", 5 1/4", 5 1/2", 5 3/4", Druckfestigkeit: 200 MPa bis 260 MPa
Bohrtiefe: Keine Grenze
Hervorheben:

M30 M40 M50 M60 M80 Shank DTH Drill Bits

,

3.5 - 12 Inch Down The Hole Drill Bits

,

Carburized Steel Button Bits

M30 M40 M50 M60 M80 Shank DTH Drill Bits for DTH Drilling
Product Application

DTH hammers and bits are widely used in underground mining, quarries, hydraulic and hydro-power engineering, water well drilling, mineral exploration, anchoring hole drilling, geothermal engineering, subway excavation, and other civil engineering applications. They offer advantages including high flatness, smooth hole walls, high rigidity of drill rod and hammer, independent high axial thrust, unlimited drilling depth, low device costs, and easy maintenance.

Key Features
  • Button bit provides high wear resistance on medium-hard to hard abrasive rock formations (200-260 MPa compressive strength) with spherical tungsten carbide inserts for strong configuration against carbide fracture
  • Recommended for eliminating hole deviation
  • Ideal for drifting and tunneling applications
  • Bit face design optimized for medium-hard to hard abrasive rock
Mission Series DTH Bit Specifications
Mission Bits Bit Dia (mm) Bit Dia (inch) Air Hose Gauge Buttons Front Buttons Part No
Mission40 105 4 1/8" 2 6×φ14 5×φ13 M40-105
110 4 1/4" 2 7×φ13 6×φ13 M40-110
115 4 1/2" 2 7×φ14 6×φ13 M40-115
120 4 3/4" 2 8×φ14 6×φ14 M40-120
127 5" 2 8×φ14 7×φ14 M40-127
Mission50 133 5 1/4" 2 7×φ16 6×φ14 M50-130
140 5 1/2" 2 7×φ18 7×φ14 M50-140
146 5 3/4" 2 8×φ18 7×φ14 M50-146
152 6" 2 8×φ18 8×φ14 M50-152
165 6 1/2" 2 8×φ18 8×φ16 M50-165
Mission60 152 6" 2 8×φ16 8×φ16 M60-152
165 6 1/2" 2 8×φ18 8×φ16 M60-165
178 7" 2 8×φ18 8×φ18 M60-178
190 7 1/2" 3 9×φ18 9×φ16 M60-190
203 8" 3 9×φ18 9×φ18 M60-203
Mission80 195 7 11/16" 3 9×φ18 9×φ16 M80-195
203 8" 3 9×φ18 9×φ18 M80-203
216 8 1/2" 2 10×φ18 12×φ16 M80-216
254 10" 3 11×φ18 17×φ16 M80-254
305 12" 4 12×φ18 29×φ16 M80-305
Product Images

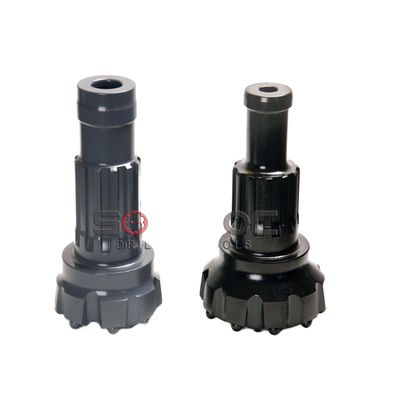

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 0

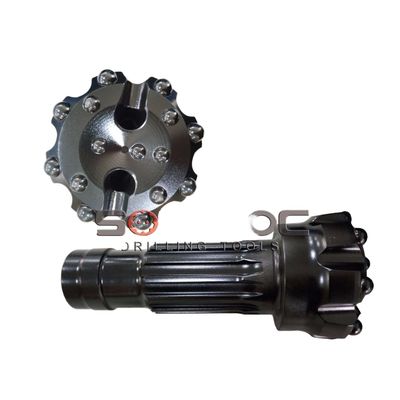

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 1

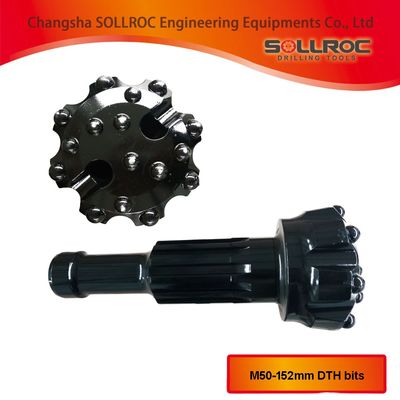

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 2

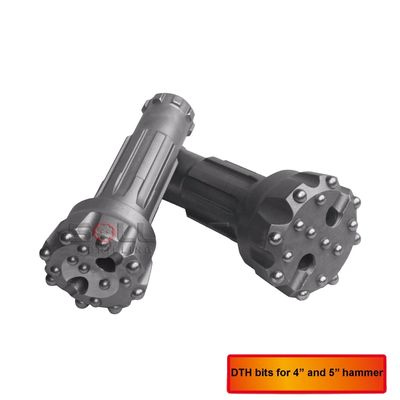

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 3
Flat face

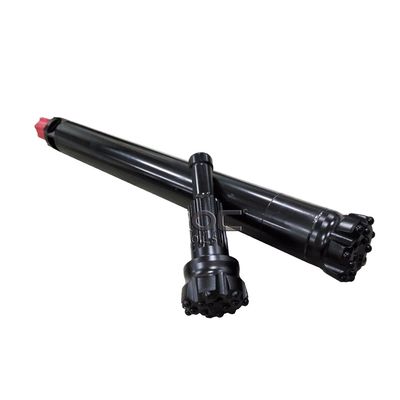

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 4
Convex

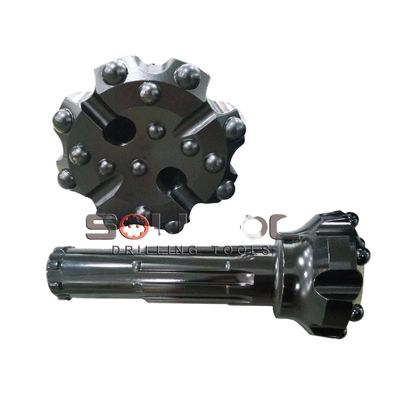

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 5
Concave
Packing & Delivery
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 6
Ply-wooden cases
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 7
Ply-wooden cases + pallet

Delivery options: By sea, by air, or by express
