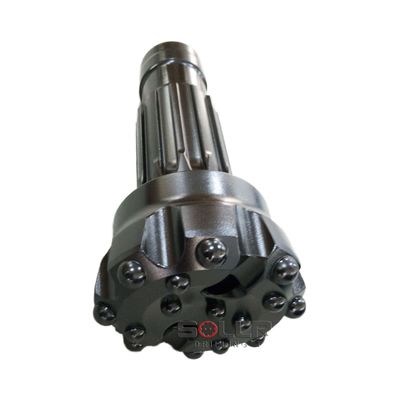

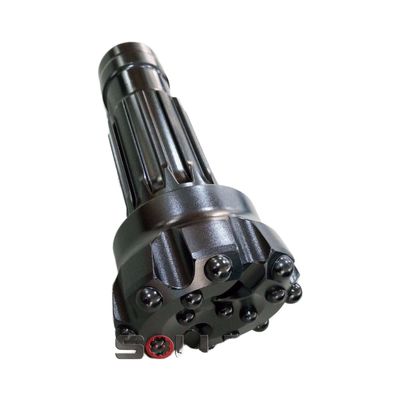

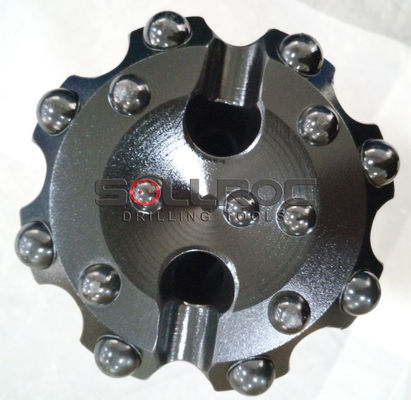

QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining

QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining
QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining

Großes Bild :  QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining

Produktdetails:
Herkunftsort: Hunan, China
Markenname: Sollroc
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: $200
Kontakt

QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining

Beschreibung
Gewicht: 18 kg Material: Carbid
Verarbeitungstyp: Schmieden Größe: 6 Zoll
Durchmesser: 152 bis 203 mm Faden: API-Faden
Bit-Gesichtsdesign: konkav-konvexe flache Fläche Spüllöcher: 2*26
Messknöpfe: 8*18 Vorderknöpfe: 4*16+4*14
Teile-Nr.: HD65-152 Knopfdurchmesser: 26mm, 18mm, 16mm, 14mm
Bohrtiefe: Keine Grenze Bohrstangensteifigkeit: Hoch
Durchdringungsrate: Hoch
Hervorheben:

152-203mm Diameter DTH Drill Bits

,

Steel Carbide DTH Drill Bits

,

Forging DTH Drill Bits

QL60 DTH Drill Bits 6 Inch Steel Carbide Forging - API Certified
Product Description
DTH drilling tools utilize compressed air as motivation, driving impact mechanisms down the hole. The system controls piston reciprocating motion through a distribution device in the hammer, transmitting impact power to the DTH bit which breaks rock formations for efficient drilling.
6 Inch DTH Bit Specifications (DHD360 Concave Face Reference)
Bit Diameter Flushing Holes Gauge Buttons Front Buttons Weight (kg) Part No.
152mm (6") 2*26mm 8*18mm 4*16+4*14mm 23 HD65-152
156mm (6 1/8") 2*26mm 8*18mm 4*16+4*14mm 23.5 HD65-156
160mm (6 5/16") 2*26mm 8*18mm 4*16+4*14mm 23.5 HD65-160
165mm (6 1/2") 2*26mm 8*18mm 8*16mm 24 HD65-165
171mm (6 3/4") 2*26mm 8*18mm 10*16mm 25 HD65-171
185mm (7 1/4") 3*22mm 9*18mm 10*16mm 27 HD65-185
190mm (7 1/2") 2*26mm 10*18mm 13*16mm 28 HD65-190
203mm (8") 2*26mm 10*18mm 14*16mm 31 HD65-203
Key Features
  • Strict quality control throughout manufacturing
  • High-quality special steels and carbide materials
  • Precision CNC machining production
  • Optimized design for minimal problem rates
  • Low air consumption with maximum impact power
  • High penetration rates for efficient drilling
Operational Advantages
Our DTH bits deliver superior flatness, smooth hole walls, and excellent rigidity. They operate independently of high axial thrust with no drilling depth limitations, offering low maintenance costs and easy servicing. Ideal for drilling holes from 105mm to 254mm diameter.
Applications
Widely used in underground mining, quarries, hydro-power projects, water well drilling, mineral exploration, anchoring holes, geothermal engineering, subway construction, and various civil engineering applications.
About Sollroc
With over 10 years of experience, Sollroc is a leading manufacturer of high-performance rock drilling tools including DTH hammers, RC hammers, drill rods, and top hammer drilling tools. Our products serve mining, quarrying, water well drilling, and geotechnical industries worldwide.
We specialize in designing and manufacturing equipment for both standard models and custom client requirements, implementing strict quality control systems to ensure durable, superior products that meet international standards.
